Advanced Structure Panel
Advanced Structure Panel
Advanced Structure is a quality profile of selected issues, significantly important to structural sandwich constructions, with reference to objective quality measures. Advanced Structure, has been developed as a tool for the customer to ensure that the product he is buying meets the most demanding requirements for load-bearing sandwich panels, representing the highest quality standard in terms of:
Fire Safety
InstaBuilder Advanced Structure results in secure strength properties, reliable long-tern durability and fire safety in sandwich panels. The essential characteristics of Advanced Structure panels can not be identified visually but they can still be measured and controlled in the manufacturing process.
Click Picture For Further Details

Structural Framing Product Description

All of Northern Steel's Pre-Engineered Systems are pre-cut, pre-drilled and easily marked for rapid onsite assembly.

Description: A horizontal or vertical structural member which supports roof/wall panels and is in the shape of a Cee or Zee.
Gauge: 14
Depth: 4", 6", 8"
Finish: Red Oxide Primer
Fasteners: Bolts
Limitations: Designed to meet specific load criteria.

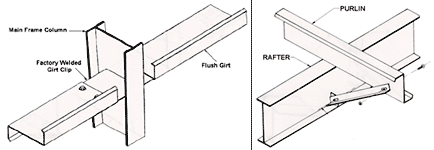

Pictured above is a purlin to rafter with a flange brace.

Feature Benefit
1. EZ purlin ½" variance in flange width & 50 degree angled stiffener lip. 1. Allows easy placement of purlins and easy installation and greater stability.
2. Nominal purlin spacing of 5'. 2. Economical design.
3. 50+ combinations of size, gauge, spacing and lap length. 3. Optimum design and economical pricing.
4. Continuous purlin lap lengths of 1' 2 ¾", 2' 5 ¾", 3' 8 ¾". 4. Optimum design and economical pricing.
5. Pre-painted, factory baked red oxide finish. 5. Smooth, attractive appearance, improved adherence & durability. Therefore, no paint sticking problems.
6. Purlin clips welded to frame 6. Rest point during erection, quicker erection, reduces purlin roll under heavy loading, & increases stiffness.
7. Optional Galvanized finish. 7. Meets specifications, greater resistance to some corrosive atmospheres.
8. Tabbed sag angles are used with standing seam options/systems. 8. Reduces purlin roll, increases stiffness, ease of erection, greater stability, and increased load capacity.
9. Easy purlin identification (triangle). 9. Ease of erection.
10. Members of LGSI. 10. Meets specifications.
