Advanced Structure Panel
Advanced Structure Panel
Advanced Structure is a quality profile of selected issues, significantly important to structural sandwich constructions, with reference to objective quality measures. Advanced Structure, has been developed as a tool for the customer to ensure that the product he is buying meets the most demanding requirements for load-bearing sandwich panels, representing the highest quality standard in terms of:
Fire Safety
InstaBuilder Advanced Structure results in secure strength properties, reliable long-tern durability and fire safety in sandwich panels. The essential characteristics of Advanced Structure panels can not be identified visually but they can still be measured and controlled in the manufacturing process.
Click Picture For Further Details
EWP Wall Panel

ESP Wall Panel

With Stucco Acrylic Finish

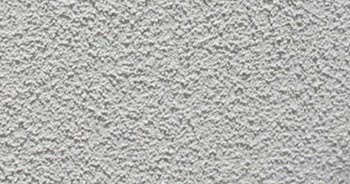

Description: The Textured Finish is a 100% acrylic based coating that is spray applied to the exterior metal face of the insulated panel. The net result is a stucco-like surface that adds architectural appeal. The factory application of the finish is a major advantage to contractors allowing the finished panel to be installed in cold and wet climates.

EWP panels offer contemporary styling in an easily installed product. The profile gives any building a strong vertical accent that is ideal for pre-engineered and conventional building construction. Minor flutes in the flat surface of the profile (EWP-F) are standard and are designed to aid in reducing the potential for waviness or oil canning. The panel is also available without the minor flutes (EWP-P) as an option. This Tecfoam panel is filled with non CFC polyurethane modified isocyanurate foam achieving R-values up to 34.6.

Dimensions: Nominal 36" coverage; Thickness (T) – 2", 2 ½", 3", 4" and 5".



Material:  Exterior – 26 ga. steel (std). 24 and 22 ga. also available.
Interior – 26 ga. steel (std). 24 and 22 ga. also available.

Finish Options: Dura 20 Painted Finish, Stucco Acrylic.

Texture: The exterior and interior skins are embossed only.

Length: The maximum recommended length is 30' 0". Contact IPS for panel length options. IPS offers standard details for stack joint applications for walls over 30' 0" high.

Fasteners: Concealed, 14 ga. steel clip.

Test Data

Test Purpose Procedure Results
Thermal Resistance Determines insulating properties of the panels ASTM C 236
Guarded Hot Box
Good R values for an HCFC Foam System (see published values for panel type and thickness)
Air Leakage Measures air leakage through the panel joints ASTM E 283
Chamber Method
The leakage rate for panel will not exceed 0.01 CFM/SF at 40 psf pressure differential
Water Penetration Measures water leakage through the panel joints ASTM E 331
Chamber Method
No water penetration at pressure differential of 50 psf
Strength Determines the load/span properties of the roof and wall panels ASTM E 72
Chamber Method
Panel load/span and deflection tables are available
Ignition Properties Determines ignition emperatures of the panel core material ASTM D 1929 Self-ignition temperature is 860 degrees F.
Flash-ignition temperature is 842 degrees F.
Surface Burning Determines the surface burning characteristics of the core and panels Underwriters Laboratories UL 723 (ASTM E 84) Core Material (5")
Flame Spread 20*, Smoke Developed 400

Finished Panel
2" to 5" Wall Panel

Flame Spread 15*, Smoke Developed 250 - 450
Southwest Research Institute ASTM E 84 Finished Panel
2" to 5" Wall Panel

Flame Spread 10*, Smoke Developed 145
Room Fire Test Evaluates the burning of roof and wall panels in a room configuration Factory Mutual
STD. 4880 (1994)
(UBC 17-5)
Panel is rated Class 1 to 30 ft. high, 5 in. max. thickness

*The numerical flame spread rating is not intended to reflect hazards presented by this or any other material under actual fire conditions.

Thermal Properties

EWP Wall Panel

Product Code


"U" Factor

"R" Factor

EWP 200
